Alloy Steel 20X2H4 Parallel Spline Drive Shaft Spline Grinding

Brand Name : YIZGEAR

Model Number : SS220082303

Place of Origin : CHINA

MOQ : 5 Pieces

Price : $50.0/Piece

Payment Terms : L/C, T/T, Western Union, D/P

Supply Ability : 1000 Pieces/Month

Delivery Time : 55 Days

Packaging Details : Plywood Crate

Material : 20X2H4

Manufacturing Process : Spline Grinding

Hardness : 58-62 HRC

Spline Width : 10

Tip Diameter : 150

Minor Diameter : 127

Contact Now

Customized Alloy Steel 20X2H4 Spline Grinding Parallel Spline Drive Shaft

1) Types of Splined Shaft

a) Parallel key splined shaft

b) Involute Splined Shaft

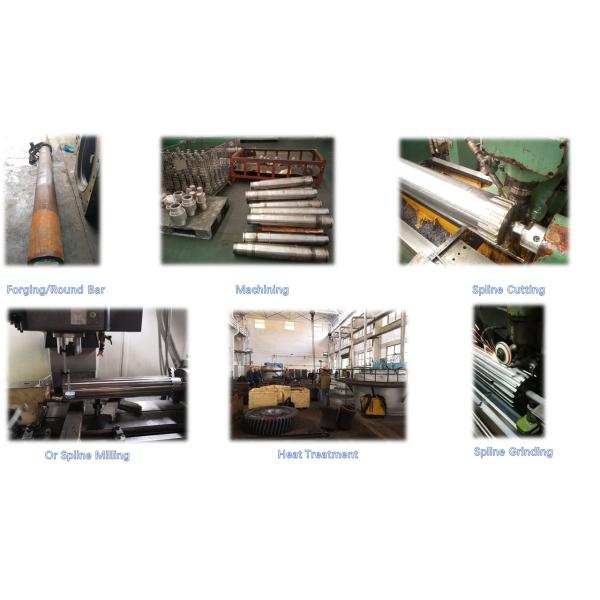

2) Manufacture of Splined Shaft

a) CNC Machining

b) Spline Hobbing

c) Spine Grinding

3) Material of Splined Shaft

a) Alloy Steel

b) Carbon Steel

c) Aluminum Alloy

d) Stainless Steel

Alloy Steel 20X2H4 Parallel Spline Drive Shaft Spline Grinding

Products Rectangular Spline Shafts
Custom Made √
Gear Profile Type Spline
Spline Teeth manufacturing Spline Milling/ Spilne Grinding
Spline Teeth Grinding √
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) 30°
Helix Angle (β)
Teeth Accuracy Grade ISO 6-7 Grade
Heat Treatment Carburizing/
Surface Hardness 58-62 HRC

STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 　 18XГT 　 SMK22 　
20Cr2Ni4 　 20X2H4A 　 　 　
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 　 40XH2MA/
40XHMA		 4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420 　

Alloy Steel 20X2H4 Parallel Spline Drive Shaft Spline Grinding
